Xpelair Simply Silent Timer controlled Square Extractor Fan 150mm - DX150TS
£46.45 (Inc. VAT)
Extractor fans with a built-in timer control means that the fan will operate with the bathroom light switch and then overrun for a set amount of time to continue removing moisture from the air. This is great for steamy bathrooms, allowing you to turn the light off but continue with extraction for a short time.
Recessed fans can be installed through a wall, window or alternatively the ceiling giving you that extra bit of flexibility.
Axial type fans cause gas to flow through in an axial direction which is parallel to the shaft where the blades rotate, making the flow axial at exit and entry. Axial fans are designed to create a pressure difference and force which produces a flow through the fan.
This product has a rating of IPX4 which means it is protected from water splashes from any angle.
Zone 1 Rated
IP rating stands for 'Ingress Protection rating' and this helps us determine what bathroom electricals can go in particular bathroom zones. An IP (Ingress Protection) number or code is used here in the UK to specify the environmental protection of enclosures around electronic equipment. These ratings are determined by specific tests.
These extractor fans can be fitted within Zone 1 as shown below.
Use in Kitchen (without cooker hood)
This type of fan is suitable for use in a kitchen without an extractor cooker hood, giving you a fantastic flow rate.
Each unit has two speeds available producing extraction rates of 227 or 259 cubic metres per hour. The required speed must be selected during installation. These rates produce noise levels of 39.9 and 41.6 decibels which is the equivalent of a quiet birdsong. Most of the noise associated with extractors comes from the air movement through it and the motor itself. To reduce this Xpelair have added a new feature called Ghost Air Movement Technology. It uses extra quiet motors and higher quality parts to reduce the sound. When you compare these statistics with other similarly sized extractors you understand where the name Simply Silent comes from.
Features and Benefits:
- Ghost Air Movement Technology makes this one of the quietest fans of this size on the market.
- Two speeds which produce extraction rates of 227 or 259 cubic metres per hour.
- Sleek design for discreet installation in your bathroom.
- Integrated overrun timer built-in.
- Suitable for fitting in a wall, panel, ceiling or a window.
- Extract Performance: 227/259 m3/h
- Sound Pressure Level: 39.9/41.6 [email protected]
- Electrical Power Rating: 12.7/28.1 W
- Specific Fan Power: 0.20/0.39 W/l/s
- IP (Ingress Protection) Rating: 4

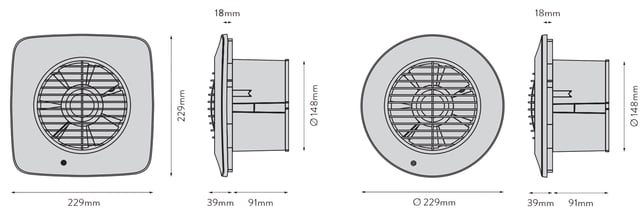

- Height: 229 mm
- Width: 229 mm
|Overall Depth||130 mm|
|Protruding Depth||39 mm|
|Fan Size (Metric)||150 mm|
|Fan Size (Imperial)||6 Inches|
|Max Flowrate||67 Lts/sec|
|Mounting Location||Wall + Ceiling|
|Max Noise Level||41.6 Db|
|Bathroom Installation Zone||Zone 1|
|Room Suitability||Kitchen (w/o Hood)|
£ 46.45 (Inc. VAT)
Interest Free in 4 Easy Payments
Prices last checked on 01/12/2021
All prices are inc VAT and include delivery charges
Price Guaranteed For
Bought this fan to replace 4 inch fan in daughters basement ensuite. Extra power solved all condensation issues. Used adaptor as 4inch extractor piping impossible to remove Excellent fan and service getting it from Plumbworld was as usual first class One very happy daughter and brownie points to Dad
Easy to install. Good price. Very quiet. Seems to extract very well.
Not so silent but very good and strong good price recommend
