Xpelair Simply Silent Timer controlled Round Extractor Fan with fitting kit 100mm - DX100TR
£29.95 (Inc. VAT)
Extractor fans with a built-in timer control means that the fan will operate with the bathroom light switch and then overrun for a set amount of time to continue removing moisture from the air. This is great for steamy bathrooms, allowing you to turn the light off but continue with extraction for a short time.
Recessed fans can be installed through a wall, window or alternatively the ceiling giving you that extra bit of flexibility.
Axial type fans cause gas to flow through in an axial direction which is parallel to the shaft where the blades rotate, making the flow axial at exit and entry. Axial fans are designed to create a pressure difference and force which produces a flow through the fan.
This product has a rating of IPX4 which means it is protected from water splashes from any angle.
Zone 1 Rated
IP rating stands for 'Ingress Protection rating' and this helps us determine what bathroom electricals can go in particular bathroom zones. An IP (Ingress Protection) number or code is used here in the UK to specify the environmental protection of enclosures around electronic equipment. These ratings are determined by specific tests.
These extractor fans can be fitted within Zone 1 as shown below.
Use in a Cloakroom or Bathroom
This type of fan is suitable for use in a cloakroom and a bathroom to give you an excellent flow rate.
Extractor fans are key to removing unwanted odours and excessive moisture. This slows down mould growth and your bathroom stays fresher for longer.
The new Simply Silent range of bathroom extractor fans from Xpelair are exactly that, silent. They feature a choice of two speeds and two extraction rates, 53 or 74m3/hr which produce sound levels of 22 and 34 decibels. Put into perspective 22 decibels is marginally louder than leaves rustling. Compared with similar fans on the market these are one of the quietest.

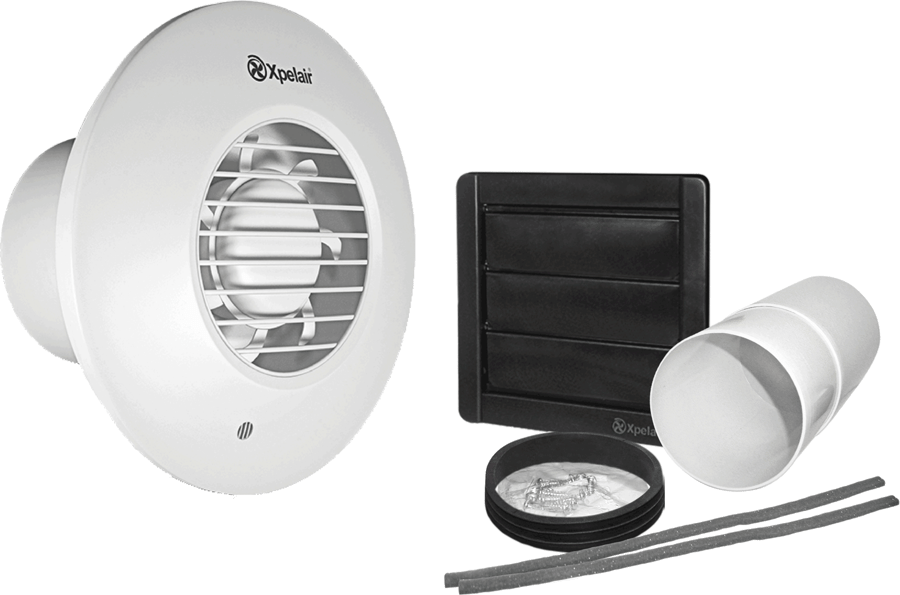

The flexibility and simplicity of installation isn’t this extractors only trick, it’s supplied with an wall kit comprising a 300mm telescopic wall tube and external grille.
Features and Benefits:
- Extract Performance: 54/76 m3/h
- Sound Pressure Level: 22/34 [email protected]
- Electrical Power Rating: 6.6/7.7 W
- Specific Fan Power: 0.45/0.37 W/l/s
- Speeds: 2
- IP Rating: IPX4
- Round design

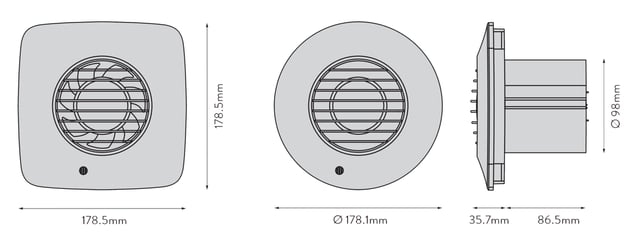

- Height: 178.1 mm
- Width: 178.1 mm
|Overall Depth||122.2 mm|
|Protruding Depth||37.5 mm|
|Fan Size (Metric)||100 mm|
|Fan Size (Imperial)||4 Inches|
|Max Flowrate||21 Lts/sec|
|Max Noise Level||34 Db|
|Bathroom Installation Zone||Zone 1|
|Installation Kit Included||Yes|
|Room Suitability||Toilet + Bathroom|
