Xpelair Simply Silent Standard Square Extractor Fan 100mm - DX100BS
£21.15 (Inc. VAT)
These extractor fans are operated using the light switch for your bathroom. A simple flick of the switch and excess humidity from a shower or long bath can be extracted until you turn the light back off. For extended extractor you may want to consider one with a timer or humidistat.
Recessed fans can be installed through a wall, window or alternatively the ceiling giving you that extra bit of flexibility.
Axial type fans cause gas to flow through in an axial direction which is parallel to the shaft where the blades rotate, making the flow axial at exit and entry. Axial fans are designed to create a pressure difference and force which produces a flow through the fan.
This product has a rating of IPX4 which means it is protected from water splashes from any angle.
Zone 1 Rated
IP rating stands for 'Ingress Protection rating' and this helps us determine what bathroom electricals can go in particular bathroom zones. An IP (Ingress Protection) number or code is used here in the UK to specify the environmental protection of enclosures around electronic equipment. These ratings are determined by specific tests.
These extractor fans can be fitted within Zone 1 as shown below.
Use in Kitchen and Utility
This type of fan is suitable for use in a kitchen and utility room to give you an excellent flow rate.

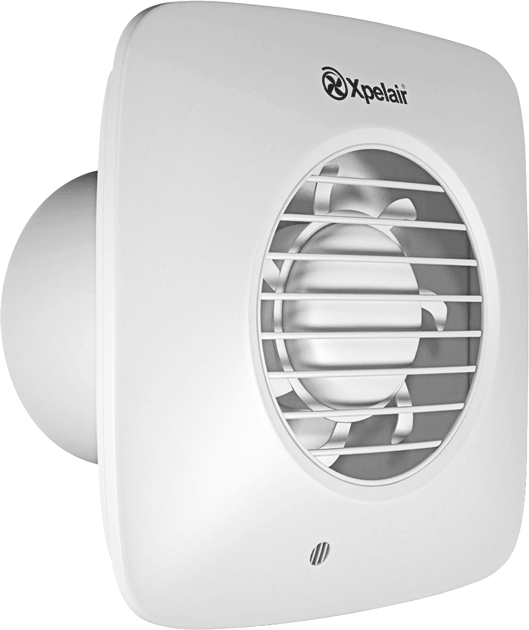

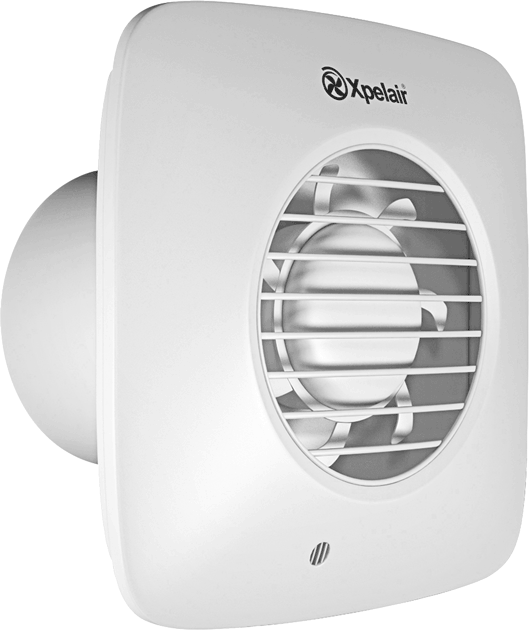

The DX100BS features a square design which is finished in a cool white. 2 speeds are available for extraction rates of 53 and 74 m3 per hour respectively. The speed setting is adjusted during installation.
Features and Benefits:
- Extract Performance (m3/hr): 54/76
- Sound Pressure Level ([email protected]): 22/34
- Electrical Power Rating (W): 6.7/7.7
- Specific Fan Power (W/l/s): 0.45/0.37
- Speeds: 2
- IPX4 or IP44 Ingress protection rating
- Contemporary square design
- Height: 178.5
- Width: 178.5
|Overall Depth||121.5 mm|
|Protruding Depth||35.7 mm|
|Fan Size (Metric)||100 mm|
|Fan Size (Imperial)||4 Inches|
|Max Flowrate||21 Lts/sec|
|Mounting Location||Wall + Ceiling|
|Max Noise Level||34 Db|
|Bathroom Installation Zone||Zone 1|
|Room Suitability||Kitchen + Utility|
£ 21.15 (Inc. VAT)
Pay interest free in 4 fortnightly payments
|! RS Electrical Supplies||£29.50|
Prices last checked on 15/10/2021
All prices are inc VAT and include delivery charges
Price Guaranteed For
Also Worth Considering
Always been a fan (forgive the pun) of Xpelair product compared to Manrose GET etc only other supplier I would rate is Vent Axia. Had these as replacements of Manrose & GET for a client they are delighted so so quiet. Only issue I had was the new 3 plate fixing not ideal when working on the ceiling of an old victorian house laths and crumbaling plaster got there in the end but would have been a simple job if the old 4 plate fixing was still in place cannot fault the product though.
Very easy to install,quiet when operating and gets rid of steam and odours from bathroom
Really prompt delivary service, very economical price, works well, just what we needed.
Product is good value for money and plumbworld is the best place to get it from.
Very impressed with purchase it knocks spots off my previous fan in my bathroom.
Excellent extraction fan looks very stylish,good value for money
3 new fans for bathroom and ensuite easy to fit not that silent on fast expel setting but look ok
