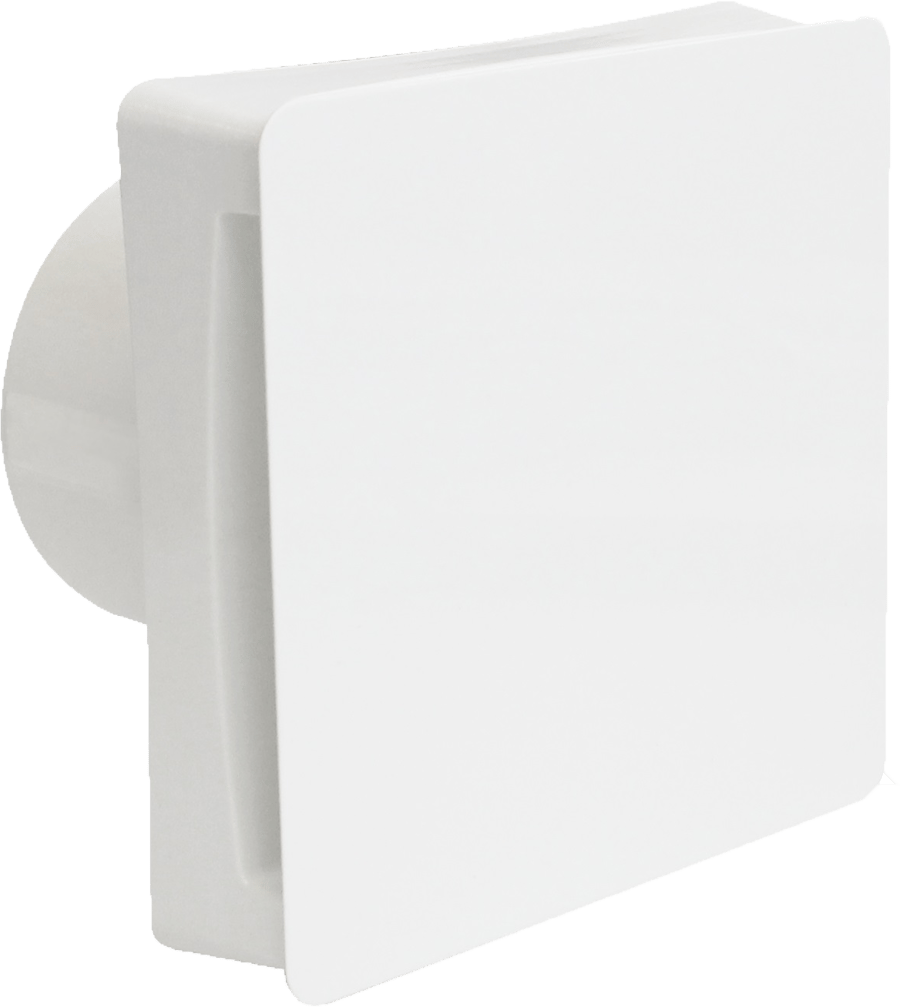

Manrose Quiet Timer Controlled 100mm Extractor Fan - CQF100T

1 review

£49.85 (Inc. VAT)

In Stock





Axial type fans cause gas to flow through in an axial direction which is parallel to the shaft where the blades rotate, making the flow axial at exit and entry. Axial fans are designed to create a pressure difference and force which produces a flow through the fan.

line break
27dB Decibel Scale
Extractor Fan Rate 22

22 ltr/s extraction rate

Building regulations stipulate that extractor fans need to be able to extract at least 15 litres of air per second. It’s needed to ensure a minimal build-up of moisture in the room, reducing mould and grime in damp areas. This fan will extract a crazy 22 litres per second! That’s 1.5x what’s recommended!



Zone 2 Rated

IP rating stands for 'Ingress Protection rating' and this helps us determine what bathroom electricals can go in particular bathroom zones. An IP (Ingress Protection) number or code is used here in the UK to specify the environmental protection of enclosures around electronic equipment. These ratings are determined by specific tests.

These extractor fans can be fitted within Zone 2 as shown below.

Bathroom Zones IP Rating

IPX4 Rating

This product has a rating of IPX4 which means it is protected from water splashes from any angle.

line break
Extractor Fan Recessed Wall & Ceiling

Recessed wall & ceiling installation

These extractor fans can be installed through a wall or recessed giving you that extra bit of flexibility. They can also be installed as portrait or landscape.

3 Year Guarantee

3-Year Guarantee

When buying anything for your home you need to know that it's going to stand the test of time. This is why this product comes with a fantastic 3-year guarantee against any manufacturing defects should the worst happen and the product is not up to standard.

Line Break

Designed to be silent and unobtrusive but powerful, producing an astonishingly low noise level of 27dBA. This extractor fan accomplishes an impressive extraction rate of 75m3/hr (21litres per second), and with all of this, it still only has a maximum consumption rate of 7 Watts. Brilliant for extracting the moisture in the room to eliminate odours, humidity and prevent mould growth. Intended for wall and panel mounting, this brilliant product is perfect for bathrooms and cloakroom toilets. With a sleek design, it blends in well with all bathroom designs.This Manrose fan also comes with a fantastic performance enhancing turning vane system which can be found in the spigot to advance the performance by keeping a high output. The unit has an adjustable timer to allow you to set it up to fit your needs effectively. Furthermore, this unit complies with the Building Regulations Ventilation Part F1. Designed using high gloss thermoplastics for a durable and robust design that will last for many years to come. All of this reassured by a minimum 30,000-hour guarantee. Match with other Manrose bathroom accessories for the best combination.

Technical Data:

  • Noise level: 27dBA
  • Power level: 7 Watts
  • Guarantee: 3 years
  • Fan speed 2300 r.p.m.
  • Max Pressure: 20 p.a.
  • Max operating temperature: 40°C


  • Height: 159mm
  • Width: 159mm
  • Projection: 41mm




Technical Drawings



Manrose Quiet Timer Controlled 100mm Extractor Fan - CQF100T Specifications
Height 163 mm
Width 163 mm
Overall Depth 111 mm
Protruding Depth 38 mm
Fan Size (Metric) 100 mm
Fan Size (Imperial) 4 Inches
Max Flowrate 22 Lts/sec
Control Type Timer
Fan Speeds 2
Mounting Location Wall + Ceiling
Fan Shape Square
IP Rating X4
Max Noise Level 27 Db
Bathroom Installation Zone Zone 2
Installation Kit Included No
Room Suitability Toilet + Bathroom
Range Name Quiet
