These extractor fans are operated using the light switch for your bathroom. A simple flick of the switch and excess humidity from a shower or long bath can be extracted until you turn the light back off. For extended extractor you may want to consider one with a timer or humidistat.
32 ltr/s extraction rate
Building regulations stipulate that extractor fans need to be able to extract at least 15 litres of air per second. It’s needed to ensure a minimal build-up of moisture in the room, reducing mould and grime in damp areas. This fan will extract a crazy 32 litres per second! That’s more than 2x what’s recommended!
Opening Iris

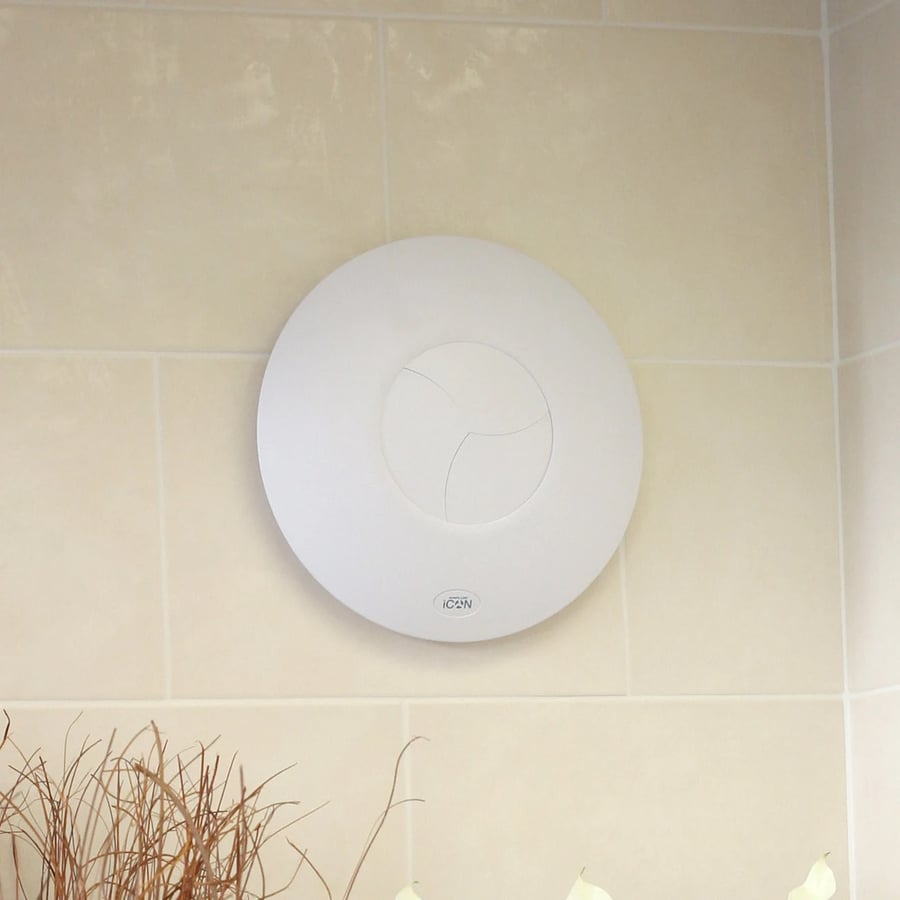

Airflow are best known for their top-quality extractor fans and thanks to eye-catching ‘opening iris’ shutter feature found on this fan, it has become an essential classic in any bathroom. The ‘Eye’ of the fan opens automatically when the fan is turned on and closes again when the fan is turned off. This helps to prevent draughts and cold air from entering the room whilst adding a touch of style.
IPX4 Rating
This product has a rating of IPX4 which means it is protected from water splashes from any angle.
Axial
Axial type fans cause gas to flow through in an axial direction which is parallel to the shaft where the blades rotate, making the flow axial at exit and entry. Axial fans are designed to create a pressure difference and force which produces a flow through the fan.
Zone 1 Rated
IP rating stands for 'Ingress Protection rating' and this helps us determine what bathroom electricals can go in particular bathroom zones. An IP (Ingress Protection) number or code is used here in the UK to specify the environmental protection of enclosures around electronic equipment. These ratings are determined by specific tests.
These extractor fans can be fitted within Zone 1 as shown below.
Interchangeable control modules – sold separately
The best thing about an Airflow iCON extractor fan is the customisation aspect. You can simply change the module for a pull cord, a timer, a timer and humidistat or a timer and motion sensor, ensuring you always have the right extraction for your bathroom.
The different modules are available as add-ons when you add the iCON to your basket.
Customise your fan fascia - sold separately
Extractor fans don't have to be plain and the iCON fans are anything but with their stylish fascias. Select the design that you'd like from the add on pop-up when you add the extractor to your basket.
Toilet & bathroom suitable
With high extraction rates this extractor fan is suitable for use in both a cloakroom toilet and a full family bathroom.
3-Year Guarantee
When buying anything for your home you need to know that it's going to stand the test of time. This is why this product comes with a fantastic 3-year guarantee against any manufacturing defects should the worst happen and the product is not up to standard.
Please note: the Airflow iCON takes approximately 30 seconds to begin opening.
Airflow iCON 30 100mm Extractor Fan - 72591601Video
Downloadable Documents
Back
Technical Drawings
Back
Specifications
Back
Airflow iCON 30 100mm Extractor Fan - 72591601 Specifications
Height
225
mm
Width
225
mm
Overall Depth
144
mm
Protruding Depth
43
mm
Fan Size (Metric)
100
mm
Fan Size (Imperial)
3.93
Inches
Max Flowrate
32
Lts/sec
Control Type
Standard
Fan Speeds
2
Mounting Location
Wall + Ceiling
Fan Shape
Round
IP Rating
IPX4
Max Noise Level
33
Db
Bathroom Installation Zone
Zone 1
Installation Kit Included
No
Room Suitability
Toilet + Bathroom
Fan Type
Axial
Range Name
iCON
Airflow iCON 30 100mm Extractor Fan - 72591601
PWAF008
£112.88(Inc. VAT)
Stock status:✓
In Stock
FREE DELIVERY
Parcel Delivery - FREE
Quick and convenient delivery, 6 days a week, including next-day options.
Plumbworld
£112.88
beacon-electrical.com
£118.74
Your Electrics
£127.68
Prices last checked on 26/04/2024
All prices are including VAT and excluding delivery charges
