Compatible With:

• Warmup Underfloor Heating

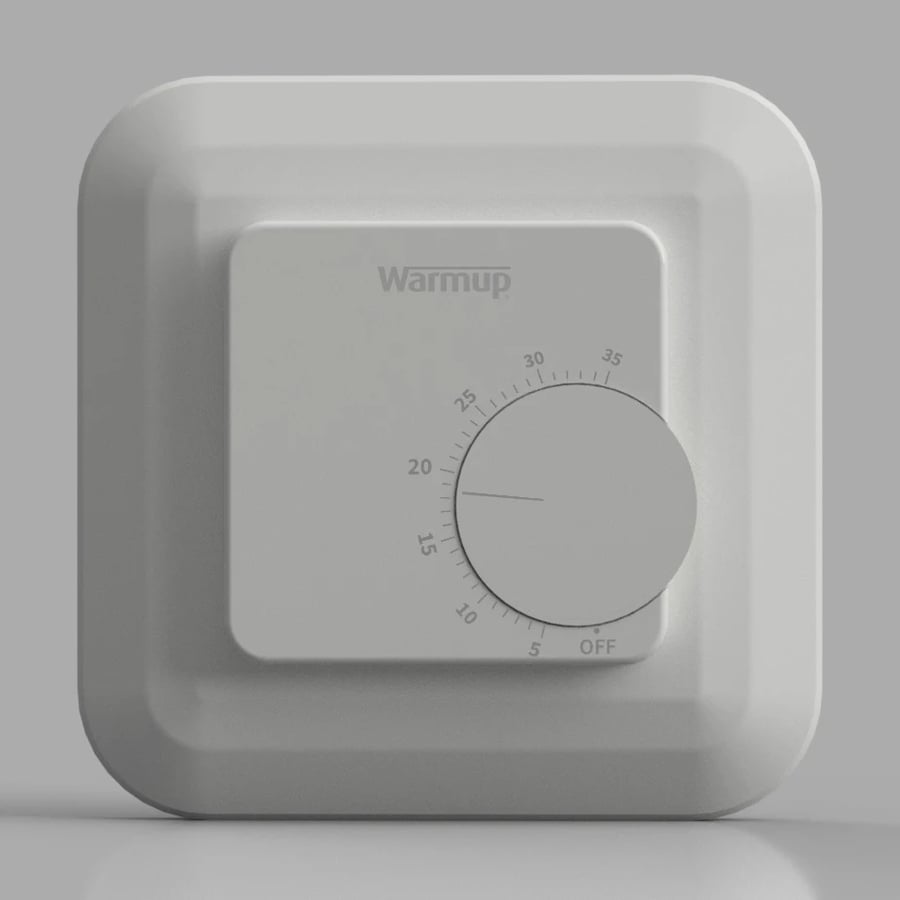

The MSTAT is a fuss free, simple to use manually operated thermostat.

Warmup’s MSTAT is a manual thermostat that can be used with either underfloor or central heating systems. Designed with an integrated dual air and floor sensor, the MSTAT gives you the choice to set an air comfort temperature or a floor comfort temperature. The MSTAT Thermostat is perfect for use in rooms which do no not benefit or require a set heating program; simply twist the dial to your optimal comfort temperature and you can enjoy warmth exactly when you want it.

• Simple dial-based control
• Quick and easy installation
• Compatible with all Warmup Underfloor Heating Systems
• Clean, classic design
• Concealed heating indicator
• Adjustable floor temperature limit
• Floor and air sensors ensure precise control
• Sensors can be set as; Air, floor or Air with a floor limit
• Automatically enters 'safe mode' if sensor failure detected
• CE marked for ultimate peace of mind

Mounting of the Floor Sensor:

• The floor sensor is used for temperature regulation in floor surfaces.
• The floor sensor must be situated in the centre of the heating cables.
• The sensor wire must not cross or touch any of the heating wires.

Mounting of the Warmup Thermostats:

The single gang mounting box must have a depth of no less than 35 mm.

1. Use a screwdriver in both sides to open the lock. The cover must be dismounted.

2. Connect cables.

3. The thermostat is mounted in the wall socket. The cover is remounted.

Warmup - Winners of the EcoVadis Bronze Medal 2023

In 2023, Warmup were awarded the EcoVadis Bronze Medal for sustainability. Warmup are committed to a cleaner and more sustainable future, offering smart, luxurious heating solutions that are also energy-efficient.

Please note: As with all electrical projects which are subject to Part P Building Regulations, all elecrical work should be carried out by a certified/qualified electrician. All work must conform to BS 7671:2008 and the current IEE Wiring Regulations.
