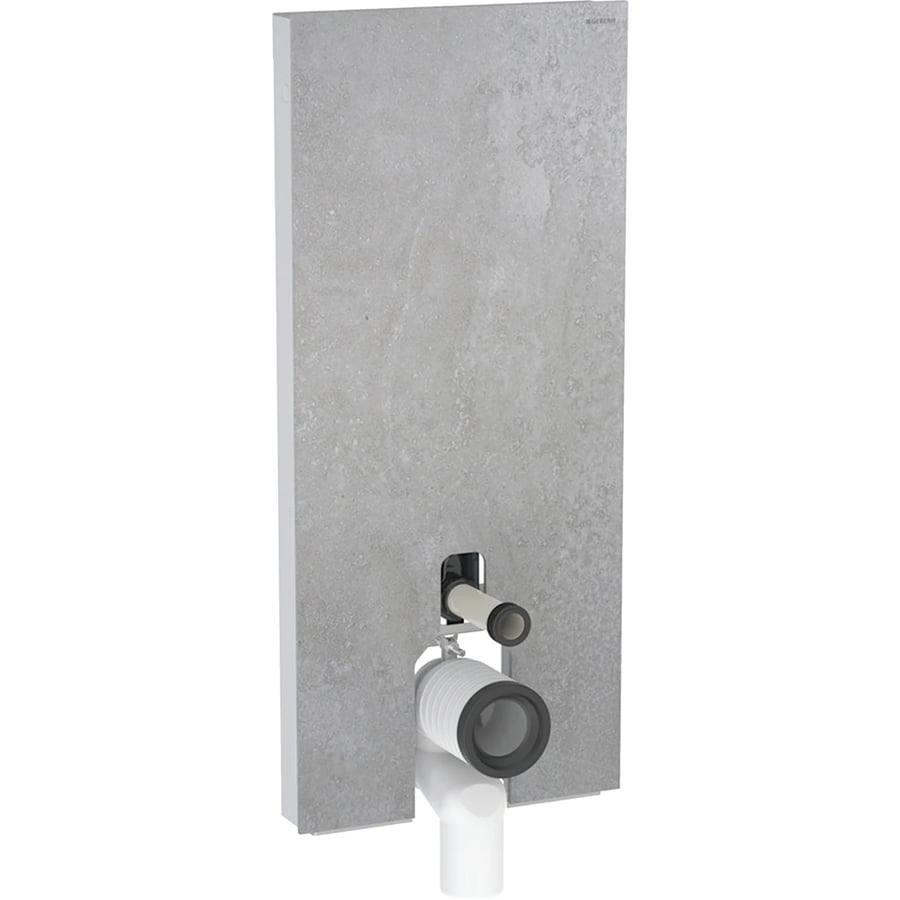

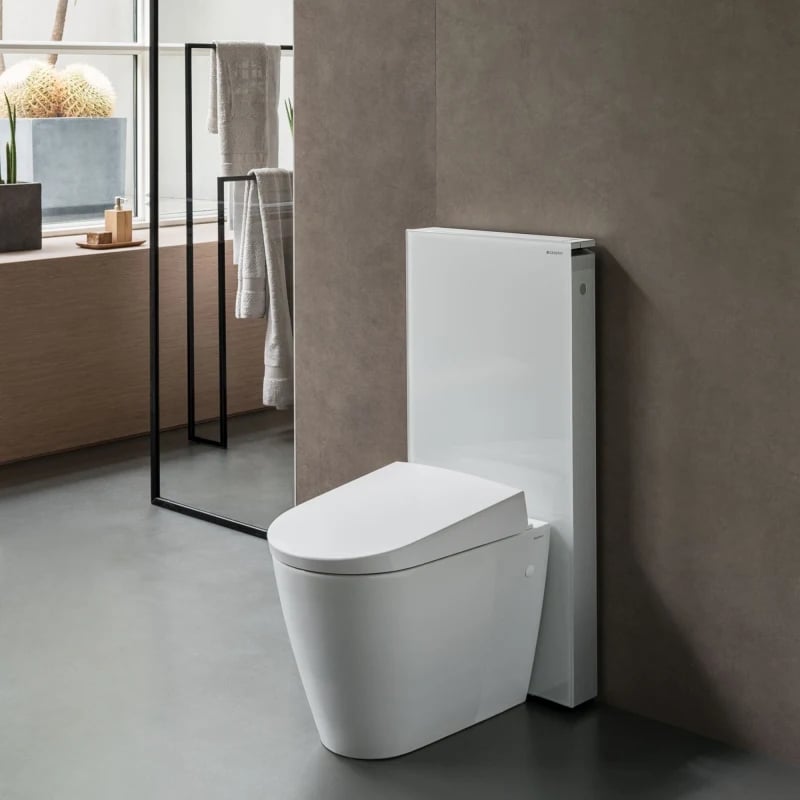

The Geberit Monolith sanitary module for floor standing toilets is a brilliant way to modernise your bathroom without major renovation work. Its slim, minimalist design hides all the plumbing and cistern components behind an attractive glass panel which doesn’t just look clean and elegant, but also makes it ideal for bathrooms where space is tight.

If you’re aiming for a fresh, updated look that doesn’t ask you to tear up walls, this module is a fantastic option that gives you everything you could ask for.

Dual Flush

With the Monolith’s dual flush system, you get the choice of a light flush for liquid waste or a stronger one for solids – it’s a simple but clever way to save water without sacrificing efficiency. It also helps reduce your water bills while being more environmentally friendly, so having the option at your fingertips and being able to conserve water every day is one of those small but impactful changes you can feel good about.

Fully Insulated Concealed Cistern

What really sets the Geberit Monolith apart is its self-supporting, concealed cistern. No extra wall support is needed, making installation easier, and it’s fully insulated to prevent condensation. That means no annoying drips or damp issues, even in a busy bathroom.

Application Purposes

• Floor inlets
• Renovations, conversions, and new builds
• Wall inlets with inlet height of 18cm

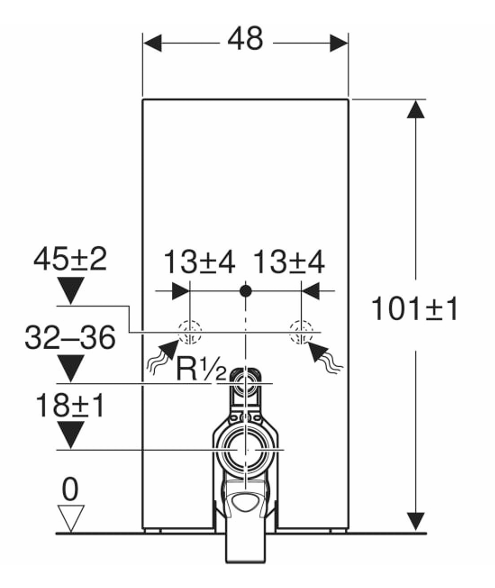

• Floor standing WCs with P-bend and water inlet height 32-36cm above floor
• Replacement for low-level exposed cisterns
• Replacement for floor standing WCs with close-coupled exposed cisterns
• Connection for Geberit AquaClean Tuma WC complete solution floor standing WC
• Connection for Geberit AquaClean WC enhancement solutions
• Installation in front of drywalls or solid walls

Additional Information

• Minimum operating pressure 0.1 bar
• Maximum operating pressure 10 bar
• Operating temp: 25o
• Large flush is adjustable from 4.5 to 6 litres
• Water supply connected on the bottom (connection on left/right possible with accessories)
• Water supply connection set with 2 angle stop valves, 1/2"
• Flush bend extension 160 mm
• Sleeve made of EPDM, ø 44 / 55 mm
• Connection bend made of PP, ø 90 mm
• Adaptor socket made of PE-HD, ø 90 / 110 mm
