Key Features:

• Thermostatic dual control — sets flow and temperature separately
• Two outlet diverter — switches between drench head and handset
• 200mm square drench head — delivers a wide overhead spray
• Easyfit installation — the faceplate suits 60 to 75mm wall depths
• Brass and ABS build — gives a durable valve and fittings
• Brushed brass finish — creates a warm satin look

Warranty:

• Lifetime parts, 1 year labour

What's Included:

• 1 x concealed thermostatic shower valve with two outlet diverter
• 1 x concealing plate
• 2 x control handle
• 2 x valve shroud
• 2 x valve fixing screw
• 1 x 200 x 200mm square drench head
• 1 x filter washer
• 1 x 330mm wall arm
• 1 x wall arm shroud
• 1 x rubber washer
• 1 x backnut
• 1 x 700mm riser rail
• 2 x riser bracket
• 2 x end cap
• 1 x slider
• 1 x single function handset
• 1 x cone to nut shower hose
• 1 x wall outlet
• 1 x screw pack

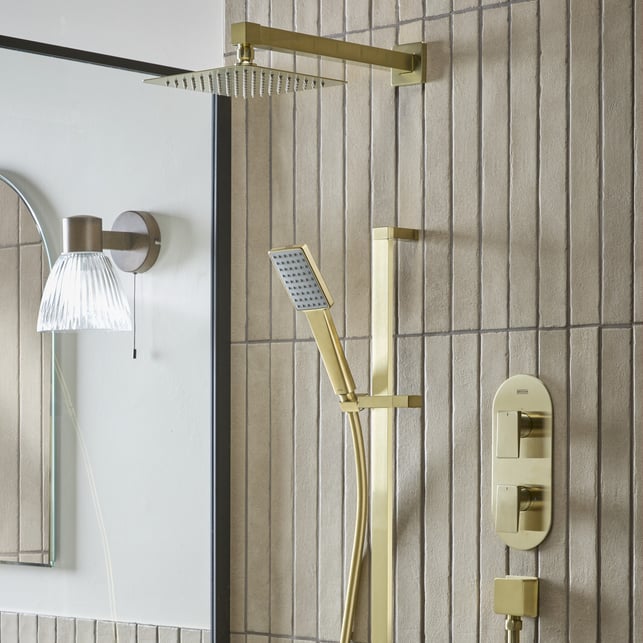

The Bristan Tangram Thermostatic Dual Head Concealed Mixer Shower Brushed Brass is a complete shower in one box: the valve, a drench head on a wall arm, a handset on an adjustable riser rail, and a wall outlet. The thermostatic valve sits in the wall behind an oval faceplate, leaving two handles on the surface. One sets the flow and picks the outlet, the other sets the temperature.

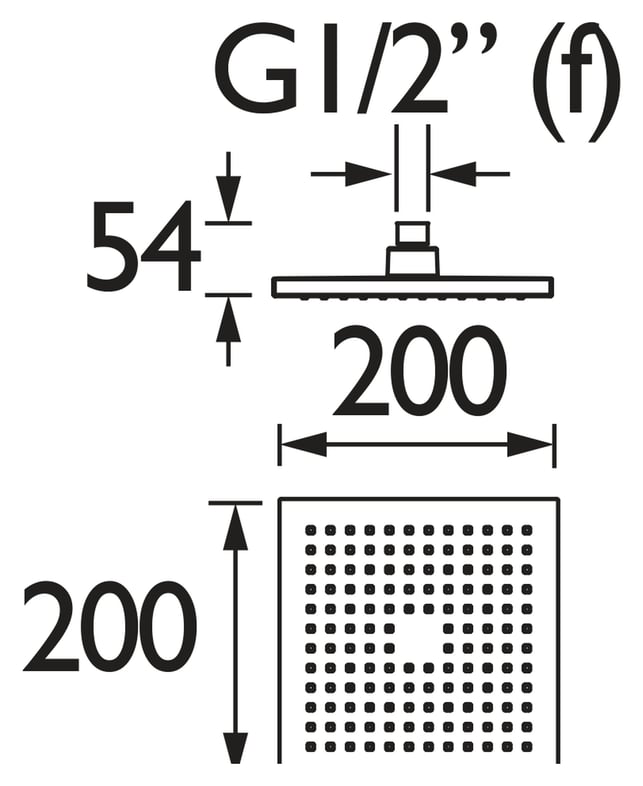

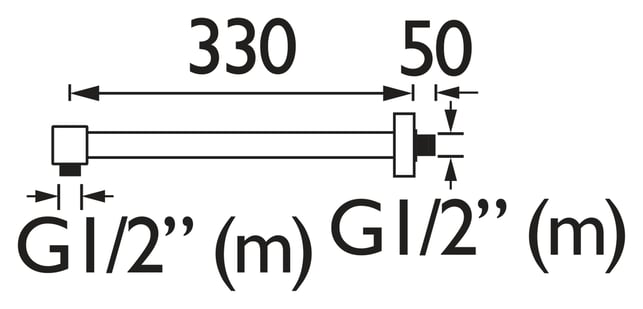

The drench head is 200mm square on a 330mm arm, and the riser rail is 700mm long. The valve needs a wall cavity between 60mm and 75mm deep, and the inlets are 15mm compression at 150mm centres.

Thermostatic Control

The cartridge holds the blend that is set and shuts the shower down if the cold supply fails. It arrives pre-set to 42°C and the maximum adjusts at the handle.

Two Outlets

The diverter is built into the flow handle. One control starts the shower and picks the drench head or the handset.

Drench Head and Handset

At 1 bar the fixed head delivers 5.9 litres a minute and the handset 5.5 litres a minute. Both carry rub clean nozzles.

Easyfit Installation

An adjustable faceplate covers total wall depths from 60mm to 75mm. The concealing plate has 15mm of adjustment for a flush finish against the tile, and the cartridge is reached from the face of the wall.

Pressure Range

This thermostatic mixer shower runs from 0.2 bar to 5 bar dynamic and is rated to 10 bar static, so it suits gravity, combination and mains systems. A check valve is built in. Isolating valves are not supplied.

Brushed Brass Finish

The brushed brass finish is a soft satin metal. It suits warm-toned bathrooms with wood, stone and cream tiling.

Additional Information:

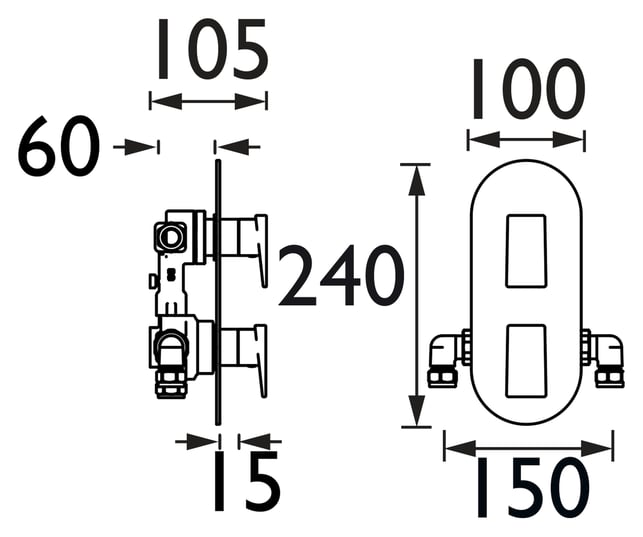

• Valve faceplate: 240 x 100mm

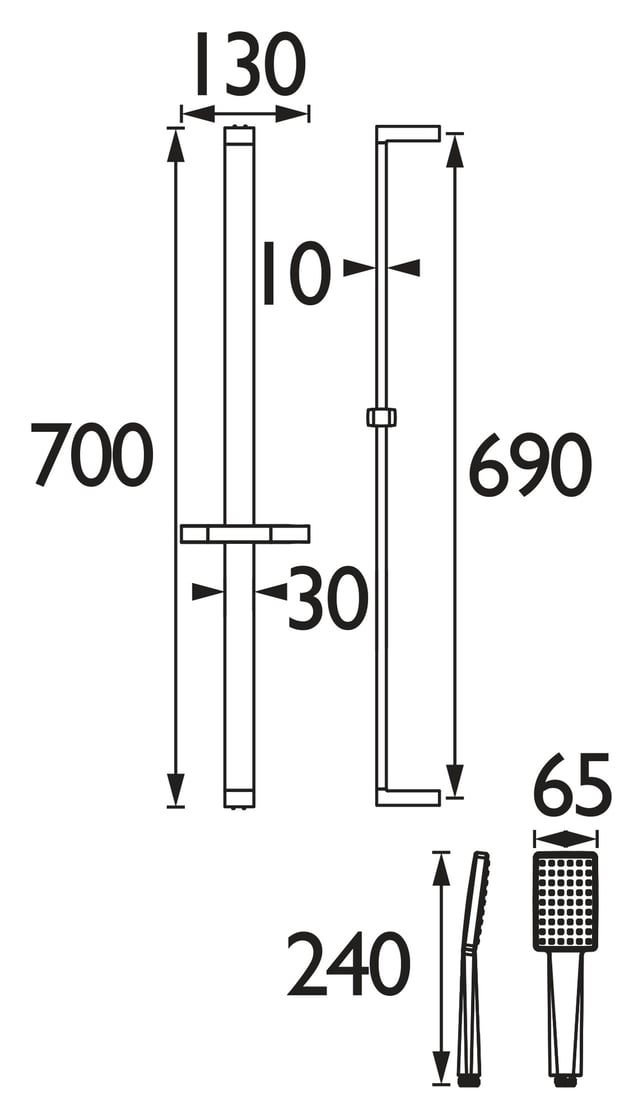

• Handset length: 240mm
• Riser rail length: 700mm

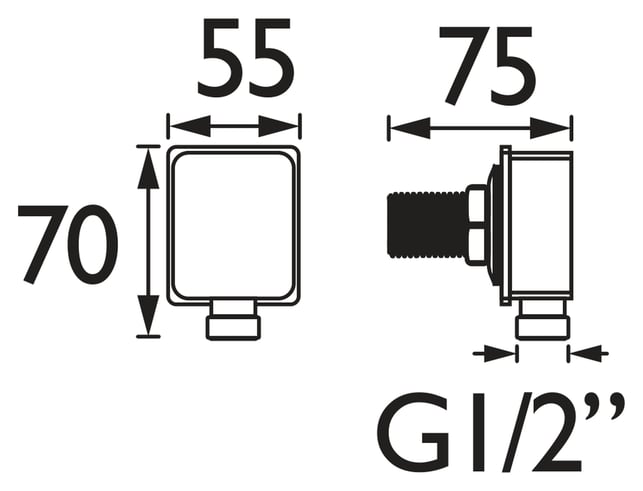

• Wall outlet: 70 x 55mm
• Maximum hot water supply temperature: 65°C
• Unified Water Label: 10 litres a minute

Bristan Thermostatic Mixer Showers give you a drenching shower at a temperature you can trust, so shop yours at Plumbworld today.
