What size quadrant tray should you choose for a small bathroom or ensuite?

For a very compact space, an 800 x 800mm tray is a common choice and will fit neatly into tight corners. If you want a bit more room to move, 900 x 900mm is the most popular and comfortable option, while 1000 x 1000mm gives the best showering space if your floorplan allows. Think about the enclosure style too: sliding doors work well with these square dimensions and won't need extra swing room.

How do low profile, raised and easy plumb (adjustable height) trays differ, and which suits your floor?

Low profile trays (about 25–45mm high) sit directly on the floor and give a minimal step-in, ideal when you can align the tray waste with your existing floor waste. Raised trays (around 90–140mm) create a plinth and are useful if you need room for the trap and pipework beneath the tray. Easy plumb or adjustable height trays let you lower or raise the tray slightly to accommodate waste pipes without building a bulky plinth, so they're a good middle ground if pipe routing is a concern.

Which material is best for durability and heat retention: acrylic, acrylic-capped ABS or stone resin?

Acrylic-capped ABS trays are lightweight, cost-effective and have a glossy white finish that suits many ensuites. Acrylic-capped stone resin (aka stone resin) is heavier and feels more solid underfoot, with better heat retention and options like a slate effect finish for a premium look. If you value a robust, warm-feel tray and don't mind the extra weight, stone resin is a strong choice; for a lighter budget option, acrylic-capped ABS works well.

Do quadrant trays come with non-slip surfaces and is it worth getting one?

Yes, several quadrant trays in the range are supplied with non-slip surfaces; the filters show both non-slip and smooth options, and there are specific non-slip models from Podium and Mira Flight Safe. A non-slip finish is a sensible safety feature for family bathrooms or if you're concerned about wet feet on a smooth tray. If you prefer a textured floor but like the look of stone resin, look for the stone resin non-slip variants to combine aesthetics and safety.

What does waste position (corner vs centre) mean for your shower layout?

A corner waste places the outlet near the tray's curve so you're less likely to stand on or block it, which is handy with quadrant enclosures and sliding doors. Centre waste is more common and works well with standard trap positions under the tray; the product range includes both options so you can match the tray to your existing plumbing. If you want to avoid moving pipework, check whether the tray's waste position lines up with your floor waste before you buy.

Page 2 of 2 Quadrant Shower Trays

Return to page 1 of Quadrant Shower Trays

‹

Filter By
42 results

Min

Max

Filter By
42 results

Min

Max

Filter Results

Sort by

42 results

hydrolux-raised-800-x-800mm-quadrant-shower-tray-with-brushed-brass-waste

‹

1 2

Page 2 of 2 Quadrant Shower Trays

Filter By
42 results

Filter By
42 results

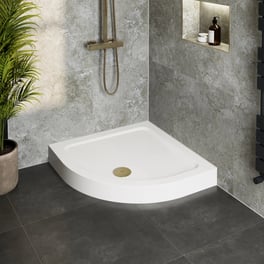

Hydrolux Raised 800 x 800mm Quadrant Shower Tray with Brushed Brass Waste

Hydrolux Raised 900 x 900mm Quadrant Shower Tray with Brushed Brass Waste

Hydrolux Raised 1000 x 1000mm Quadrant Shower Tray with Brushed Brass Waste

Podium Raised 800 x 800mm Non-Slip Quadrant Shower Tray with Black Waste

Podium Raised 900 x 900mm Non-Slip Quadrant Shower Tray with Black Waste

Podium Raised 1000 x 1000mm Non-Slip Quadrant Shower Tray with Black Waste

Podium Raised 800 x 800mm Non-Slip Quadrant Shower Tray with Brushed Brass Waste

Podium Raised 900 x 900mm Non-Slip Quadrant Shower Tray with Brushed Brass Waste

Podium Raised 1000 x 1000mm Non-Slip Quadrant Shower Tray with Brushed Brass Waste
