Please note: a ½in BSP tap connector joins the arm to your pipework and is not supplied

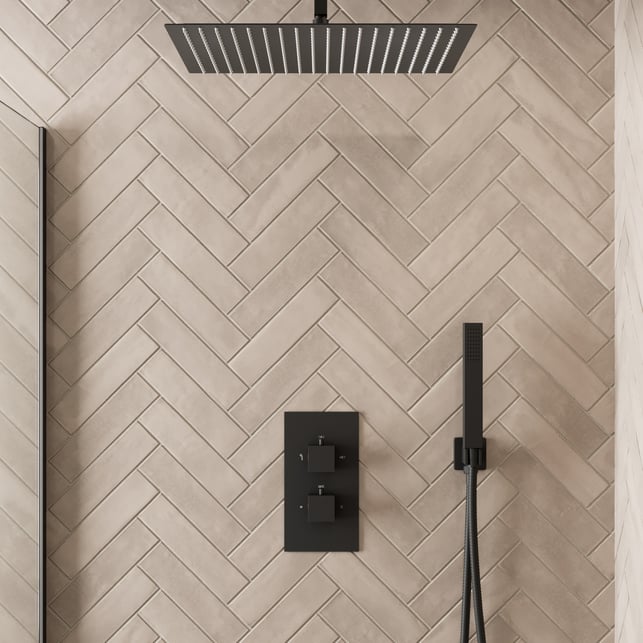

Open up your shower with the Merano Farr Thermostatic Dual Head Concealed Mixer Shower 400mm Square Ceiling Black. A 400mm square rainfall head fits to the ceiling on its own arm, and a slim pencil handset sits in a holder beside the control plate.
The thermostatic valve fits inside the wall, so only the control plate, the handset and the head are on show. This Concealed Valve Mixer Shower arrives as a complete set, with every part finished in black.
400mm Rainfall Head
The head has a 400 x 400mm (15.7 x 15.7") square spray face, so the water falls over your head and shoulders.
Thermostatic Control
The valve mixes hot and cold to the temperature you set and holds it when somebody runs a tap elsewhere in the house.
Pencil Handset
A slim handset clips into a holder beside the valve, on a 1.5m (59") hose, for rinsing off and for cleaning the enclosure down.
Two Outlets
The upper control diverts the water between the overhead head and the handset. The lower control sets the temperature.
Concealed Installation
Nothing but the plate, the arm and the head sits proud of the tiles, so the shower takes up no room in the enclosure.
Black Finish
The head, the arm, the valve plate, the handset, the outlet and the hose all carry the same black finish.
Pressure and Flow
This mixer shower works from 0.5 bar up to 5 bar, which suits a combi boiler or a mains pressure unvented cylinder.
You get a 400mm square rainfall head, a pencil handset and a concealed thermostatic valve, all in a matching black finish. Shop Merano Concealed Valve Mixer Showers at Plumbworld today.
Specifications
Back
Style
Merano Farr Thermostatic Dual Head Concealed Mixer Shower Square Ceiling Black – Style Specifications
Shower Type
Concealed Mixer Shower
Style
Contemporary
Colour
Black
Head Type
Rainfall & Handset
Range
Farr
Installation Type
Concealed
Shape
Square
Features
Merano Farr Thermostatic Dual Head Concealed Mixer Shower Square Ceiling Black – Features Specifications
Outlets
2 Outlets
Mobile App Connectivity
No
Amazon Alexa Connectivity
No
Google Home Connectivity
No
Spray Patterns
1
Temperature Control
Thermostatic
Cool Touch
No
Eco Shower
No
Technical
Merano Farr Thermostatic Dual Head Concealed Mixer Shower Square Ceiling Black – Technical Specifications
Components
Complete Showers
Supply Type
HP / Combi
Water Feed
Ceiling Fed
Warranty
10
Years
Minimum Maintained Pressure
0.5
Bar
Maximum Maintained Pressure
5
Bar
Outlet Connection
½” BSP
Inlet Fitting Connection
½” BSP
PVD Coating
No
Pressure Suitability
Medium
Reversible Inlets
No
Cartridge Type
Thermostatic
Certifications
Merano Farr Thermostatic Dual Head Concealed Mixer Shower Square Ceiling Black – Certifications Specifications
WRAS Approved
Yes
Handset Flow Rates
Merano Farr Thermostatic Dual Head Concealed Mixer Shower Square Ceiling Black – Handset Flow Rates Specifications
Handset 0.5 Bar
10.1
L/min
Handset 1.0 Bar
14.9
L/min
Handset 3.0 Bar
26.8
L/min
Handset 5.0 Bar
34.8
L/min
Rainfall Head Flow Rates
Merano Farr Thermostatic Dual Head Concealed Mixer Shower Square Ceiling Black – Rainfall Head Flow Rates Specifications
Rainfall 0.5 Bar
10.3
L/min
Rainfall 1.0 Bar
15.2
L/min
Rainfall 3.0 Bar
27.3
L/min
Rainfall 5.0 Bar
35.8
L/min
Dimensions
Merano Farr Thermostatic Dual Head Concealed Mixer Shower Square Ceiling Black – Dimensions Specifications
Largest Shower Head Width
400
mm
Shower Hose Length
1500
mm
Merano Farr Thermostatic Dual Head Concealed Mixer Shower Square Ceiling Black
Product Code: SQUCONSHW4BLK2
Product Options:
Black
Brushed Brass
Chrome
Round
Square
1 Outlet: One shower head that's either fixed or attached to an adjustable riser rail.
2 Outlets: Two shower heads, one wall or ceiling mounted and one handset, that can be used independently or sometimes simultaneously.
3 Outlets: Three shower functions, typically a shower head, a handset, and an additional feature such as body jets or a bath filler, which can be operated separately or in combination.
1 Outlet
2 Outlets
3 Outlets
Ceiling Fed: Ceiling fed showers use pipework that comes through your ceiling. They can be used with one or two shower heads.
Wall Fed: Wall fed showers use pipework that comes through the wall behind the shower. They can also be used with one or two shower heads and are easier to retrofit.
Ceiling Fed
Wall Fed
200
400
✓
In Stock
£169.95(Inc. VAT)
FREE STANDARD DELIVERY*
*exclusions apply, see here
