Discover innovation and convenience combined with the Hydrolux Shower Tray, featuring an incredibly lightweight design for effortless installation and superior performance. Crafted with precision, these raised square shower trays ensure you can enjoy a safe and comfortable showering experience each and every time.
60% Lighter than a Stone Resin Tray
The days of needing two burly men to haul the shower tray up the stairs are gone. Hydrolux shower trays can be safely lifted and installed by one person, even the largest size trays.
Mineral Torsion Beams for Extra Rigidity
The fusion of space-age high-tech materials and natural minerals in the form of torsion beams gives the shower tray extra rigidity. This makes these shower trays some of the strongest per inch.
Cut to Fit
Hydrolux square shower trays can be easily cut to a shape which means they can be installed in locations that couldn’t be done before, and certainly not with a stone resin shower tray. Please note, while it is possible to cut an acrylic capped tray, a cut edge can potentially be exposed to water ingress.
Raised Shower Tray
If you’ve got a hard floor like concrete you can still fit the shower enclosure that you want, you just need to use a raised shower tray with it. Our Hydrolux shower tray kits will give you a massive 95mm of additional height, giving you plenty of space to fit the high-flow waste that’s also included. You’ll receive a set of legs to support the underside of your tray and side panels that hide the fixings, keeping everything really neat and tidy.
Universal Compatibility
Put your mind at ease because these shower trays have been carefully designed to work flawlessly with all brands of shower enclosure glass screens.
WRAS Approved & BS EN 14527 Conformity
These shower trays conform to British and Unified European Standards and are made in England. They are also manufactured with 100% WRAS Approved Phthalate-free materials. These enclosures also conform with BS EN 14527, the European standard for enclosures.
Complete With High-Flow Waste
The included Hi-Flow Waste enables water to flow from the shower tray at a rate of 32 litres per minute.
Standard 40mm connection
A flow of 32 litres per minute
A unique vented dome on the waste allows a high flow of water to pass through
An inner unit allows a quick-release
Also includes an offset elbow for ease of installation
Size of waste: 90mm
Complies with BSEN1329/1:2000 and BSEN1451/1:2000 standards
Please note: lifestyle imagery is provided for illustrative purposes only and may not reflect the exact specifications. For precise measurements, please refer to the technical drawings.
Specifications+
Back
Technical

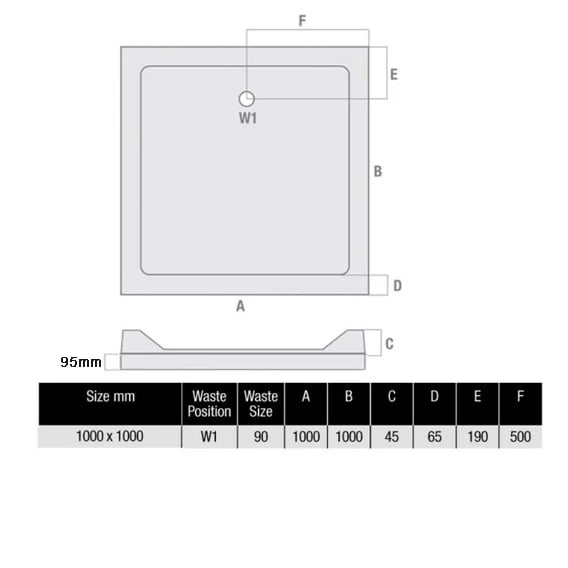

Hydrolux Raised 1000 x 1000mm Square Shower Tray with Waste – Technical Specifications
