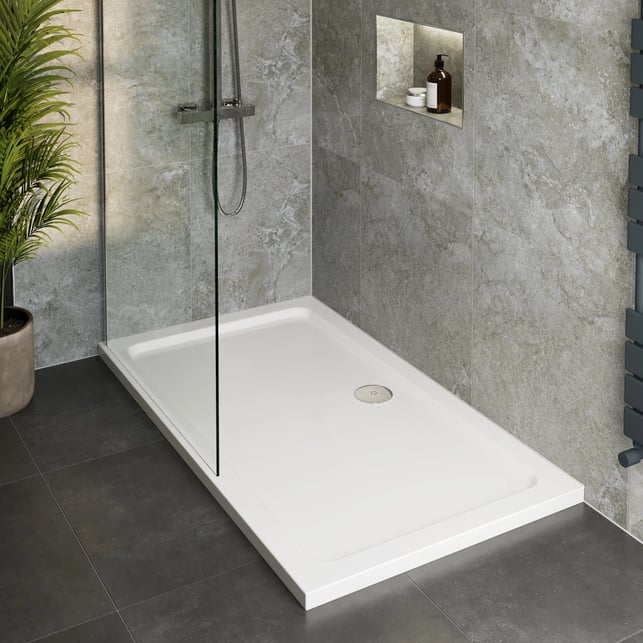

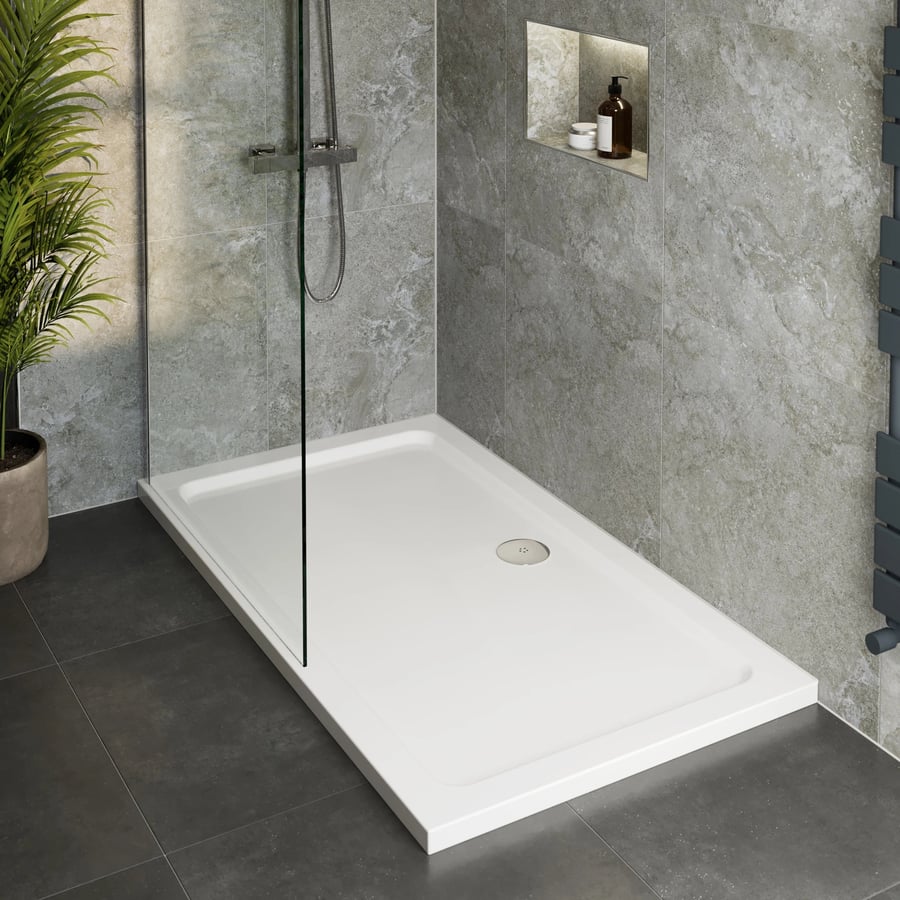

Hydrolux Low Profile 1600 x 800mm Shower Tray with Waste

32 reviews

£180.00 (Inc. VAT)

In Stock

FREE DELIVERY

Description

Discover innovation and convenience combined with the Hydrolux Shower Tray, featuring an incredibly lightweight design for effortless installation and superior performance. Crafted with precision, these shower trays ensure you can enjoy a safe and comfortable showering experience each and every time.

Our shower trays are built with durability and performance in mind, with each one tested to support up to 4000kg, whether used with or without our own supplied riser leg kits. A typical 1200 x 800mm tray weighs just 18kg, making it significantly lighter than many stone resin options.

In terms of standards and sustainability, our trays are fully compliant with all UK and EU requirements, including CE, EN 14527, EN 198, and REACH regulations. While WRAS certification isn’t required for trays, our acrylic sheet is manufactured to EN 263 for domestic use. Unlike some alternatives, we don’t use chipboard or other wood-based reinforcement materials – instead, we use Flax Particle Board, a more environmentally friendly alternative that offers strength without compromising on sustainability.

Please note, while it is possible to cut an acrylic capped tray, a cut edge can potentially be exposed to water ingress.

hydrolux shower tray high flow waste

Complete With High-Flow Waste

The included Hi-Flow Waste enables water to flow from the shower tray at a rate of 32 litres per minute.

  • Standard 40mm connection
  • A flow of 32 litres per minute
  • A unique vented dome on the waste allows a high flow of water to pass through
  • An inner unit allows a quick-release
  • Also includes an offset elbow for ease of installation
  • Size of waste: 90mm
  • Complies with BSEN1329/1:2000 and BSEN1451/1:2000 standards

Specifications

 Back

Technical

Hydrolux Low Profile 1600 x 800mm Shower Tray with Waste – Technical Specifications
Type Low Profile
Shape Rectangular
Tray Longest Side 1600 mm
Tray Shortest Side 800 mm
Height 45 mm
Upstand Option 0
Material Acrylic capped ABS
Non-Slip No
Waste Included Yes
Range Hydrolux
Colour White
Waste Position Centre Edge
Waste Colour Chrome

Documents

Technical Drawings

hydrolux-low-profile-rectangular-shower-tray-1600-x-800mm-with-waste

Hydrolux Low Profile 1600 x 800mm Shower Tray with Waste

Product Code: 2TRAY1680B

Product Options:

900
1000
1100
1200
1400
1500
1600
1700
700
750
760
800
900
Black
Brushed Brass
Chrome
In Stock

£180.00 (Inc. VAT)

FREE STANDARD DELIVERY* *exclusions apply, see here
Payment Options

Shower Trays Buying Guide


1 Product Question

Matt asked

What is the width of the glass door?

This product is a just a shower tray, and doesn't have a screen or door included.

Plumbworld
★★★★★ 4.8/5
5 star

 84 %
4 star

 13 %
3 star

 3 %
2 star

 0 %
1 star

 0 %

32 Product Reviews

Add your own review
  • 5/ 5
    Keith rated another option 5/5
    ★★★★★

    The shower tray is good size and quick service to get it delivered

  • 5/ 5
    Andrew rated another option 5/5
    ★★★★★

    I ordered this as a direct replacement. My original shower tray cracked and upon removal, I realised that the builders hadnt supported it correctly. I built a frame and lined it with 18mm ply. The shower tray is now solid. The delivery and price were brilliant as was the communication. Ill use plumbworld for all my needs from now on.

  • 5/ 5
    Stuart rated another option 5/5
    ★★★★★

    Nice cheap tray. Works well if fitted properly . Looks good Great service and delivery too.

  • 5/ 5
    Lynne Anderson rated another option 5/5
    ★★★★★

    Never used this company before. But there shower trays were the cheapest on the net .so thought I would give it a try. So glad I did for the price its very good quality. And came with the plumbing bits for the price you can't go wrong. Very quick delivery to .yes I would recommend this company and will definitely use them again

  • 5/ 5
    C&H Building Decorating Services rated another option 5/5
    ★★★★★

    Every now and then you come across a product that is excellent in every way . Not only is it a lot lighter than the heavy stone resin trays you can virtually fit it on your own , and still looks great . Also can withstand a heavy 8mm glass enclosure…..Fantastic.

  • 5/ 5
    Tian rated another option 5/5
    ★★★★★

    Helpful customer service on the phone from Plumbworld - Jocelyn advised about delivery and what to expect as I was getting it delivered to not my home address. Delivery and dispatch was very smooth and product exactly as expected!

  • 5/ 5
    Nigel rated another option 5/5
    ★★★★★

    These shower trays are great. With the lightweight, especially on the larger sizes easily fitted by one person if tray needs to be raised then the leg sets are brilliant fitted quite a few of these now with no problems

  • 5/ 5
    russell pay rated another option 5/5
    ★★★★★

    simple lightweight tray that sits nice and low on the floor. Had an issue with the waste being a 45* as i’d already cut out the drainage so beware of that but otherwise all good. That’ll teach me to assume!

  • 5/ 5
    John Edwards rated another option 5/5
    ★★★★★

    I have installed many shower trays ut this the best, light yet strong, at a good price. Excellent, I have no hesitation in recommending this item from Plumbworld.

  • 5/ 5
    Mat ralph rated another option 5/5
    ★★★★★

    Very light but bedded down on level floor with silicone splotches and expanding foam. Set rock hard next day. Doesn’t feel cold on feet. Definitely recommend
