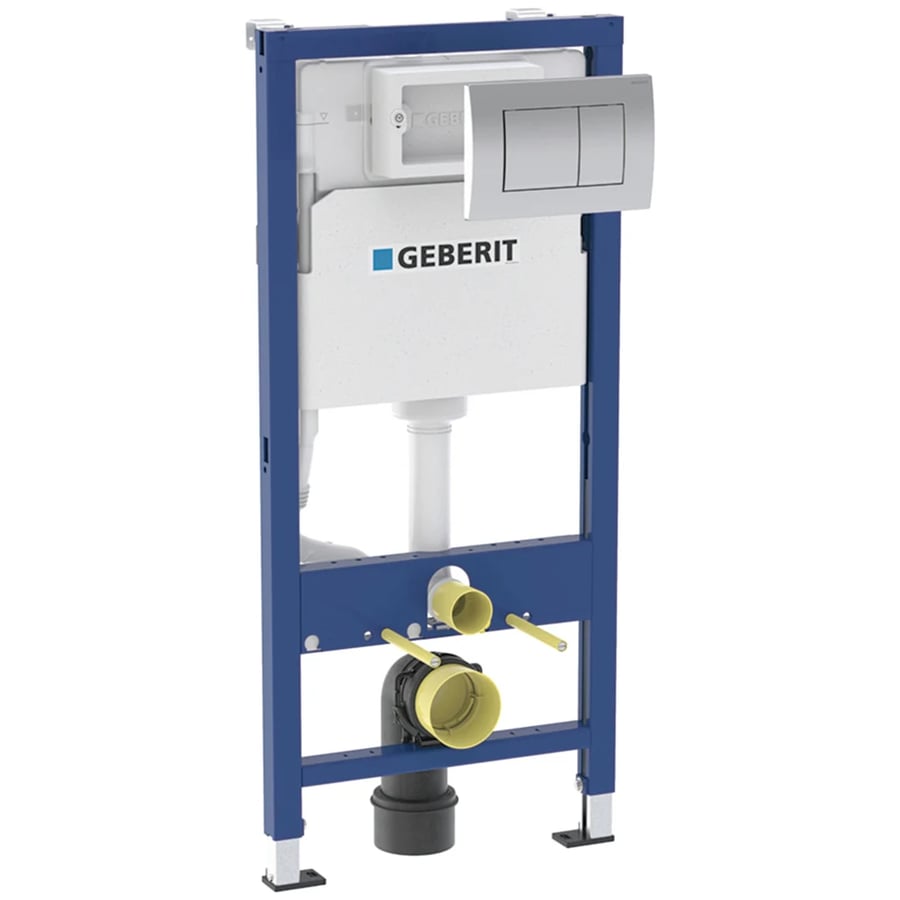

Geberit 1120mm Duofix Frame Delta Concealed Cistern and Delta30 Flush Plate - Square Buttons

£202.25 (Inc. VAT)

In Stock




Key features:

  • Compact design
  • Suitable for use with wall-hung pans

The smart way to install sleek modern looking wall-hung toilets is with Geberit Duofix frame systems. Neatly concealed behind the wall, they’re the perfect solution for every style, shape and space - from standard installations to under a window or sloping ceiling.

flush plate

Duofix Frame

Strong, secure and flexible, the frame systems sit within pre or dry wall installations bolted to the floor, supporting the sanitaryware and keeping it firmly in place. With Geberit Duofix, it’s easy to create a great contemporary look in any bathroom or cloakroom.

Large & small flush options

The best thing about a dual flush cistern is the ability to choose between a small or a large flush. Small for liquid and large for solid waste. This small flush delivers 3 litres of water while the large delivers a huge 6 litres.

Dual flush cistern

Getting a good flush out of your toilet is important but that doesn’t mean you need to waste water while you’re doing it. It’s not good for the environment and it’s not good for your bank account! With a dual flush cistern you get two different levels of flush. A large one for solid waste and a smaller one for liquid waste.

Concealed cistern installation

The best way to create a minimalist look in your bathroom is by using a wall hung or back to wall pan. They're ideal for smaller bathrooms with the cistern being fitted within the wall, controlled using a push button installed somewhere next to the toilet. It really is a far superior way of keeping your whole room less cluttered!

Technical information:

  • Height: 1120mm
  • Width: 500mm
  • Depth: 120mm
  • Maximum operating temperature (water): 25 °C
  • Flush volume (factory setting): 5.8 and 3 l
  • Flush volume (large, adjustment range): 4.5 / 6 / 7.5 l
  • Flush volume (small, adjustment range): 3-4 l

Additional information:

  • Easily installed with only four fixing points
  • Adjustable drainage bend positioning
  • Pre-wall fixing brackets and 90º drainage bend included
  • Tested to withstand 400kg of weight
  • 25 year guarantee

Please note: toilet is not included.


Technical Drawings



Geberit 1120mm Duofix Frame Delta Concealed Cistern and Delta30 Flush Plate - Square Buttons Specifications
Flush Capacity 6/3 Litres
Load Tested 400 kg
Flush Type Dual flush
Pan Suitability Wall Hung
Material Steel
Guarantee 25 Years

Geberit 1120mm Duofix Frame Delta Concealed Cistern and Delta30 Flush Plate - Square Buttons


Was £285.89
Save 29%

£202.25 (Inc. VAT)

Stock status: In Stock

Parcel Delivery - FREE

Quick and convenient delivery, 6 days a week, including next-day options.

365 Day Returns

Returns Policy - Changed Your Mind?

If you change your mind about the product when you receive it you can notify us any time within 365 days and return it for a full refund at your own cost. Any refunds will be made within 14 days of receiving your returned item. You are expected to cover the cost to return the item and your initial delivery charge will not be refunded.

Read the Plumbworld Returns Policy

Lowest Price Guaranteed
Plumbworld £202.25
Easy Bathrooms £267.26
Victorian Plumbing £279.95 £325.96

Prices last checked on 23/04/2024
All prices are including VAT and excluding delivery charges
