Key Features:

• Deck-mounted bath tap — fits a bath with two tap holes
• Brass body — does not corrode in a bathroom
• Ceramic disc valves — give a smooth quarter-turn action
• Brushed brass finish — creates a warm satin look
• 0.2 to 5 bar — suits gravity and mains systems

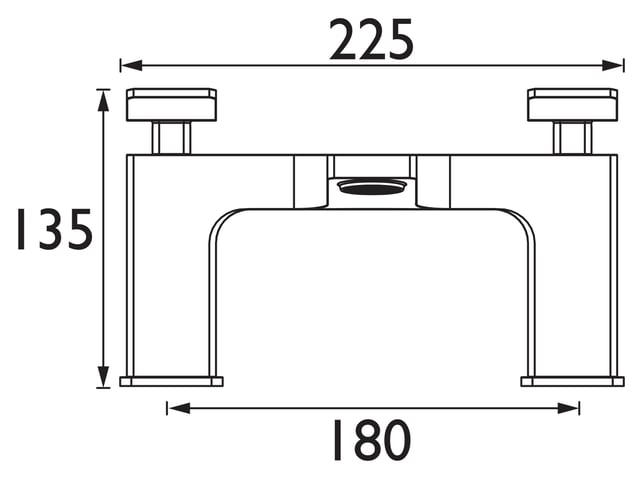

• 225 x 135mm overall size — fits 180mm tap hole centres

Warranty:

• Lifetime parts, 1 year labour

What's Included:

• 1 x Bristan Tangram brushed brass bath mixer tap
• 2 x plinth
• 2 x plinth seal
• 2 x washer
• 2 x backnut

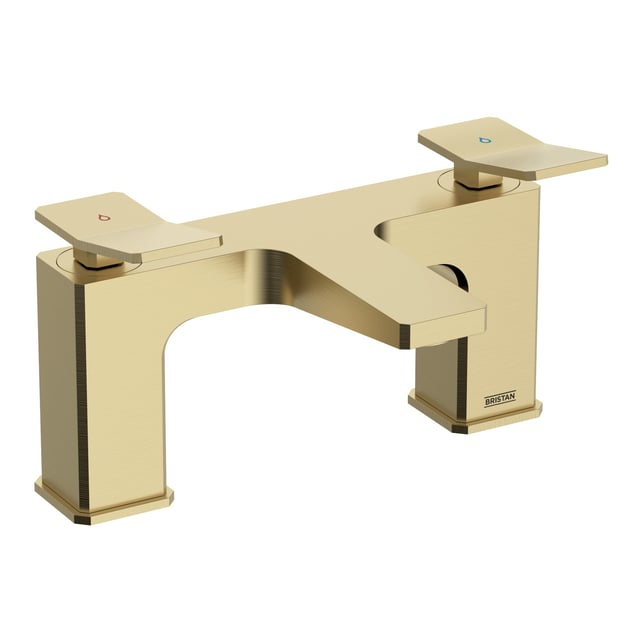

The Bristan Tangram Brushed Brass Bath Mixer Tap fills a bath from two tap holes, with an arched spout and flat paddle handles. It is made from brass with a brushed brass finish, and the quarter-turn ceramic disc valves open and close without a washer to wear out.

It sits on a bath with two tap holes 180mm apart. The spout reaches 105mm over the rim at a height of 90mm. It is one of the Bristan Tangram Bath Taps, in the wider Bristan range of Bathroom Taps, alongside a matching basin mixer and bath shower mixer.

Angular Tangram Shape

Flat paddle handles and a squared body give the Tangram its geometry. The arched spout carries the same lines across the Bristan Tangram range of Bathroom Taps.

Quarter Turn Operation

The 3/4in ceramic disc valves move from off to full flow in a quarter turn. Hot and cold are set on separate handles.

Secure Fixing

A metal fixing nut clamps the tap to the bath. It stays square to the rim once it is tightened.

Pressure and Flow

The bath mixer tap runs on gravity, combination and mains systems from 0.2 bar. At 1 bar, it delivers 43.7 litres a minute, and it is rated to 5 bar dynamic and 10 bar static.

Brushed Brass Finish

The brushed brass finish is a soft satin metal. It suits warm-toned bathrooms with wood, stone and cream tiling. Bristan Bath Mixer Taps could be the finishing touch your bathroom is missing, so shop yours at Plumbworld today.
