Key Features:

• Wall-mounted basin mixer — leaves the basin surround clear
• Chrome finish — a bright, reflective polish
• Single-lever control — sets flow and temperature together
• 180mm spout projection — reaches over a countertop basin
• Works from 0.2 bar — suits a gravity-fed hot water system
• Brass construction — rust-resistant and durable

Warranty:

• 20 years

What's Included:

• Aquess Tec spout with wall plate
• Aquess Tec lever control with wall plate

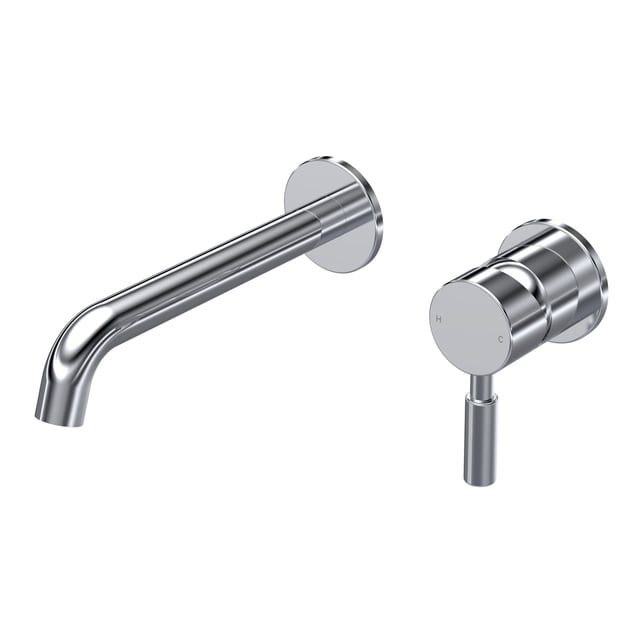

The Aquess Tec Chrome Lever Wall Mounted Basin Mixer Tap is a two-hole wall-mounted basin mixer from the Aquess Tec range of bathroom taps. The spout and the lever are separate pieces, each on its own round 55mm (2.2in) wall plate, and the body of the tap is plumbed in behind the wall.

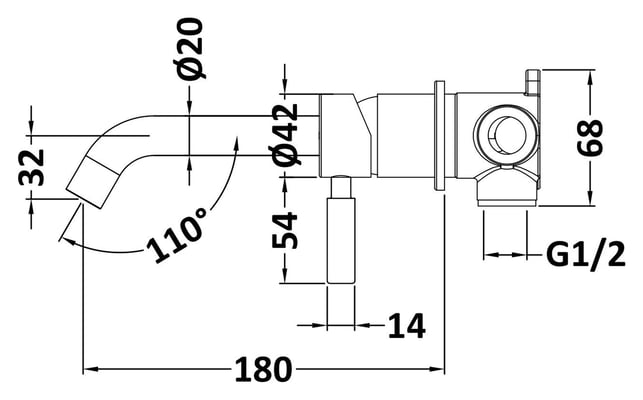

The spout reaches 180mm (7.1in) out from the wall, and the outlet drops 32mm (1.3in) at a 110-degree bend, which clears the rim of a countertop basin. The two plates are fixed 120 mm (4.7in) apart. Basin taps of this type are plumbed in before the wall is tiled or boarded.

Wall Mounted Design

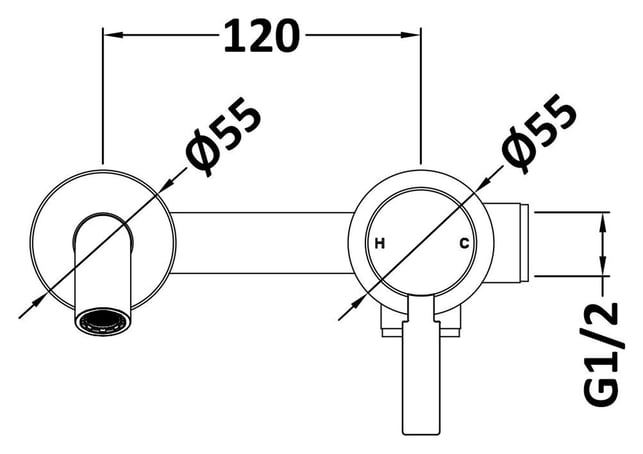

Everything but the spout and the lever is buried in the wall, so the basin and the surface around it stay clear. Two tap holes are needed, 120mm (4.7in) apart.

Chrome Finish

The tap carries a bright, reflective polish on every visible face, including the two round wall plates. Each plate is 55mm (2.2in) across and 5mm (0.2in) thick.

Single-Lever Control

One lever handles flow and temperature together. Lifting it turns the water on, and moving it left or right changes the temperature.

Outlet and Bore

The outlet sits 32mm (1.3in) below the spout centre line on a 110-degree bend. The bore measures 20mm (0.8in) across.

Flow and Pressure

Minimum operating pressure is 0.2 bar. Flow runs from 2.3 litres a minute at 0.1 bar to 16.1 litres a minute at 3 bar.

20-Year Warranty

This Aquess Tec basin mixer tap is supplied with a 20-year warranty. Shop Aquess basin mixer taps at Plumbworld today.

Additional Information:

• Flow rate: 2.3 l/min at 0.1 bar, 6.3 l/min at 0.5 bar, 9.2 l/min at 1 bar, 13.1 l/min at 2 bar, 16.1 l/min at 3 bar
