Xpelair Simply Silent Contour Standard Square Extractor Fan 150mm - C6S
4 reviews
£55.21(Inc. VAT)
9 Available
FREE DELIVERY
Plumbworld has the lowest price for this product!
Description
Switch operated
These extractor fans are operated using the light switch for your bathroom. A simple flick of the switch and excess humidity from a shower or long bath can be extracted until you turn the light back off. For extended extractor you may want to consider one with a timer or humidistat.
Recessed Design
Recessed fans can be installed through a wall, window or alternatively the ceiling giving you that extra bit of flexibility.
Axial
Axial type fans cause gas to flow through in an axial direction which is parallel to the shaft where the blades rotate, making the flow axial at exit and entry. Axial fans are designed to create a pressure difference and force which produces a flow through the fan.
IPX4 Rating
This product has a rating of IPX4 which means it is protected from water splashes from any angle.
Zone 1 Rated
IP rating stands for 'Ingress Protection rating' and this helps us determine what bathroom electricals can go in particular bathroom zones. An IP (Ingress Protection) number or code is used here in the UK to specify the environmental protection of enclosures around electronic equipment. These ratings are determined by specific tests.
These extractor fans can be fitted within Zone 1 as shown below.
With extractor fans the majority of noise comes from the movement of air and the motor. To reduce these levels Xpelair have introduced a new feature known as Ghost Air Movement Technology. Long-life silent operating motors are combined with precision engineered parts to remove all mechanical noise.

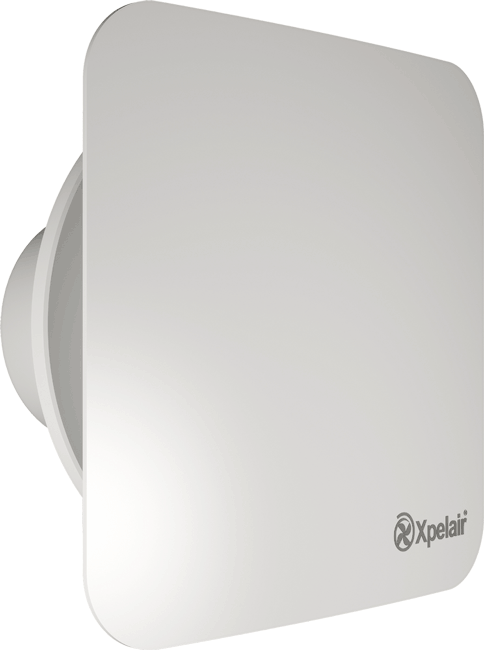

The C6S features a 150mm (6 inch) square baffle fascia and is typically connected to the room lighting circuit.
This is possible thanks to the So Simple quick-fit clamp that allows the extractor to be secured simply to panels and ceilings. Added larger cable slots enable easier wiring too!
Accurate fan alignment is ensured during installation with the three adjustable radial screw fixing points.
As an added bonus Xpelair cover the extractor with a 2 year guarantee.
Features and Benefits:
Ghost Air Movement Technology for the quietest possible noise levels during operation.
Sleek design for subtle installation in your kitchen.
2 speeds (selectable at install) 60l/s and 69l/s.
Suitable for installation in a wall, ceiling, panel or a window for extra flexibility.
Knock-out section to allow for side entry wiring.
Compliant with building regulations Parts F and L.
Specific Fan Power: 0.22/0.41 W/I/s.
Xpelair Simply Silent Contour Standard Square Extractor Fan 150mm - C6SDownloadable Documents
Technical Drawings
Specifications
Technical
Height
228
mm
Width
228
mm
Overall Depth
143
mm
Protruding Depth
52
mm
Fan Size (Metric)
150
mm
Fan Size (Imperial)
6
Inches
Max Flowrate
61
Lts/sec
Control Type
Switch
Fan Speeds
2
Mounting Location
Wall + Ceiling
Fan Shape
Square
IP Rating
IPX4
Max Noise Level
44.6
Db
Fan Type
Axial
Bathroom Installation Zone
Zone 1
Room Suitability
Kitchen (w/o Hood)
