Key Features:
- Up to 611m³/h normal extraction — Captures cooking vapour and odours across a wide hob
- 806m³/h intensive boost — Provides additional airflow during demanding cooking
- Three normal speeds plus boost — Let you match extraction to the cooking activity
- Advanced DC motor — Combines powerful airflow with controlled operating noise
- 64dB maximum normal-speed noise — Supports effective extraction without excessive disruption
- Ducted or recirculating installation — Offers flexibility for different kitchen layouts
- Carbon filters included — Reduce cooking odours during recirculating operation
- No-return valve included — Helps prevent extracted air flowing back into the kitchen
- Air deflector included — Directs filtered air correctly during recirculation
- A+ energy rating — Balances strong extraction with efficient operation
- Black glass finish — Creates a sleek, contemporary appearance
- 2 Year (10 Year Parts) warranty
What’s Included:
The Haier Series 4 HATS9CBS4B 90cm Slim Box Chimney Cooker Hood combines wide extraction coverage with perimetral aspiration and a powerful DC motor. It extracts up to 611m³/h during normal operation, while intensive boost increases airflow to 806m³/h.
Powerful extraction
Three normal fan speeds allow the extraction rate to be adjusted for different cooking demands. Lower settings suit gentle simmering, while the highest normal speed handles increased vapour from boiling and frying.
At its highest normal setting, the hood extracts up to 611m³/h.
806m³/h intensive boost
Intensive boost provides temporary maximum extraction during high-vapour cooking. It reaches an airflow rate of up to 806m³/h.
Boost mode is intended for short-term use and may automatically return to a lower setting after a set period.
Advanced DC motor
The DC motor delivers strong airflow while helping reduce energy consumption and operating noise. Haier states a sound level of 64dB(A) at the highest normal speed.
Noise rises to a stated 69dB(A) when intensive boost is operating.
Perimetral aspiration
Instead of drawing air through one exposed central area, perimetral aspiration pulls fumes around the edges of the front panel. This expands the capture area while maintaining a streamlined exterior.
Touch display and LED lighting
The front-mounted touch display provides convenient access to the speed settings, boost mode and lighting. An integrated LED strip illuminates the cooking surface across the width of the hood.
Ducted or recirculating installation

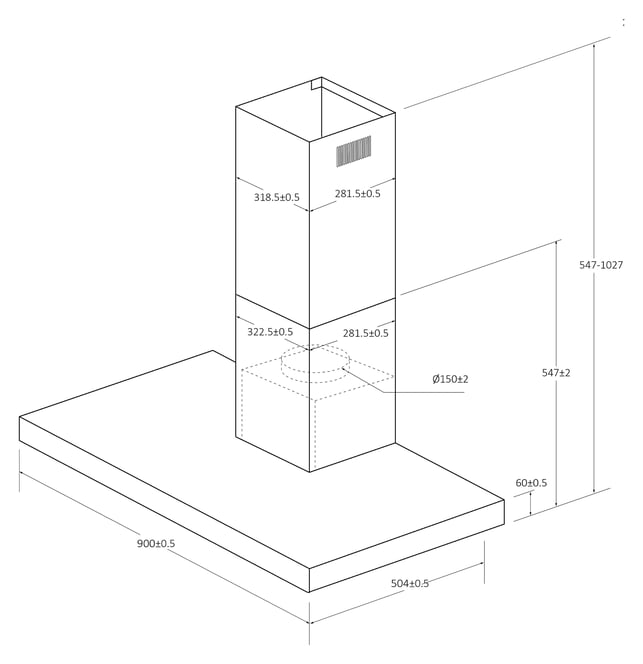

The 150mm outlet allows cooking fumes and moisture to be discharged outdoors through suitable ducting.
Where an exterior duct route is unavailable, the hood can operate in recirculation mode. Included carbon filters reduce cooking odours before returning the air to the kitchen.
Recirculation does not remove moisture from the room. Carbon filters require periodic cleaning or replacement according to the manufacturer’s instructions.
Premium accessories included
A no-return valve helps prevent extracted air from flowing back through the ducting. The supplied air deflector directs filtered air appropriately when the hood is installed in recirculation mode.
A+ energy efficiency
The hood carries an A+ energy rating, combining high extraction performance with efficient everyday operation.
Wide, efficient extraction
Add the Haier HATS9CBS4B to your kitchen for broad extraction coverage, powerful intensive ventilation and premium black-glass styling.
